Orders for this product usually ship in 7-14 business days.
SKU50063A-4/80
Takes Buckingham’s OX BLOCK™ Clevis Top to the next level with the newest addition, the Buck Pin. The original design featured a shoulder bolt design which required a ratchet and a hex wrench to remove the lock nut. It also required a new lock nut every time you change accessories, but the Buck Pin makes this process much easier. Now you can simply remove the pin at the press of a button!
The patented OX BLOCK™ replaces standard handline blocks, parted blocks and various snatch blocks.
Has greater WLLs than blocks of similar size.
When configured with optional pulleys, the OX BLOCK™ can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads.
The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device.
ASME B30 Compliant

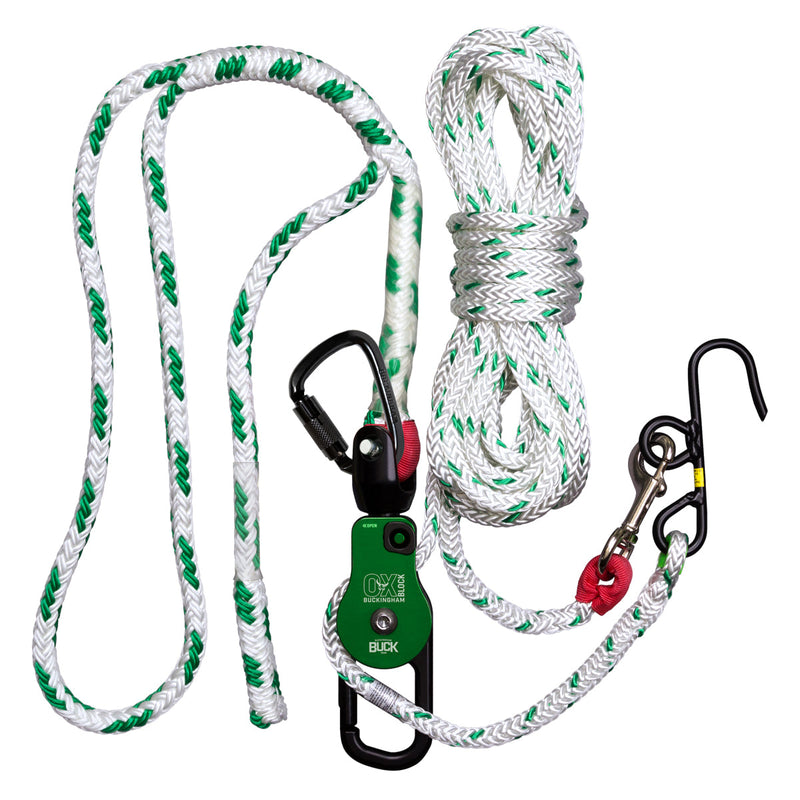

An OX BLOCK™ Clevis top w/ Buck Pin (50063) that features a carabiner, 4′ x 5/8” adjustable sling, and 80′ handline assembly.
The Buck Pin is a SLIC Pin specifically customized to fit our Ox clevis top. The advantage of the Buck Pin is that it allows the user to add or remove accessories more quickly and easily than the shoulder bolt does.
The OX BLOCK™ is a rope snatch block with an integrated friction bar used for:
Hurtman/self-rescue
Lowering
Raising
Snubbing loads
*Handline hook and snap are not intended for human support.
Product Specifications
Product Number:
50063A-4/80
Product Name:
OX BLOCK™ BUCK PIN CLEVIS TOP WITH CARABINER HANDLINE ASSEMBLY
Material:
Lightweight Aluminum
Length:
10.5"
Width:
2"
Gate Opening Capacity:
1.5"
Weight:
9.7 lbs.
Adjustable Sling:
4 x 5/8"
Handline Assembly:
80 Handline Hook
Handline Hook WLL:
500 lbs.
Handline Snap MBS:
750 lbs.
MBS:
6,000 lbs.
WLL:
1,500 lbf.
MBS:
10,000 lbs.
WLL:
2,500 lbf.
OX Block Standards:
ASME B30 Compliant
Made in USA?:
Yes
*To view other Ox Block videos, click the menu in the upper left of the video frame.
